Among the many armored fighting vehicles of World War II, few machines captured the imagination of engineers and historians alike as much as the German Panther tank. Introduced in 1943, the Panther represented Germany’s attempt to counter the Soviet T-34 with a vehicle combining heavy armor, powerful armament, and advanced optics.

When it entered service, it immediately demonstrated outstanding battlefield capabilities. Its long-barreled 7.5 cm gun was capable of defeating most Allied armor at long range. Yet, the Panther’s turret, originally designed quickly during the vehicle’s rushed development, had several flaws.

If you are interested in how German Panther companies actually fought in World War II, I’ve put together a free ebook based on manuals and battlefield reports. You will find the link in the description. One of the most serious issues was the shape of the gun mantlet. The early Panthers used a rounded mantlet that could deflect incoming shells downward.

When this occurred, the deflected round might strike the thin roof of the hull or the turret ring, potentially disabling the tank with a single hit. This dangerous vulnerability became known as a shot trap. German engineers therefore began exploring alternatives. The result would be one of the most intriguing turret designs of the war.

The first major step occurred in early 1944 when the armaments manufacturer Rheinmetall began developing a new turret concept for the Panther. In March of 1944, engineers produced conceptual drawing titled Turm Panther Schmalturm or Panther turret narrow mantlet. The design had several ambitious goals.

Eliminate the shot trap problem. Increase armor protection without excessive weight gain. Reduce the size of the turret silhouette. Integrate a new rangefinder for long-range gunnery. And simplify production. The new turret shape immediately reflected these priorities. Instead of the rounded mantlet of earlier Panthers, the design employed a sharply angled one, similar in concept to that used on the Tiger II.

This geometry ensured that incoming rounds were more likely to ricochet away rather than deflect downward. Equally important was the reduction in frontal width. By narrowing the turret front, the design reduced the exposed surface area while allowing thicker armor to be installed. If you enjoyed this video, don’t just watch history, engage with it.

Check out my World War II word search books on Amazon. Each volume focuses on a specific battle, tank, unit, or commander. This one covers the Panzerkampfwagen VIII Maus. Train your knowledge and stay sharp. You will find all my books in the description below. For many years, historians believed that the Schmalturm had been designed solely for the Panther II project.

That assumption seemed logical. The Panther II was intended to incorporate several improvements over the original Panther, including heavier armor and simplified production. However, research has shown that the turret’s development followed a slightly different path. In fact, the design was increasingly associated with the next production variant of the existing Panther line, the Panther Ausführung F or F version.

This distinction matters because the Panther II itself remained largely experimental. The F version, by contrast, was intended to become the next mass-produced Panther variant. Several hulls were actually completed before the war ended. The Schmalturm therefore represents the culmination of the Panther’s evolutionary development rather than a component of an unrealized heavy prototype.

At first glance, the Schmalturm appears unusual compared to the earlier Panther turret. Its front plate is much narrower and sharply angled, creating a distinctive hexagonal shape. This configuration offered significant advantages. The turret front was planned to have 120 mm of armor sloped at roughly 20°.

Side armor thickness increased to 60 mm compared with the 45 mm on earlier Panthers. The turret roof was also thickened dramatically from 16 to around 40 mm. The gun mantlet itself was even more formidable. In some proposals, it reached 150 mm of thickness shaped in a bell-like form designed to deflect incoming rounds.

Remarkably, these improvements were achieved through increasing the overall weight of the turret. Because the Schmalturm’s frontal area was smaller, the heavier armor could be installed while maintaining manageable mass. The result was a turret that was both better protected and more compact than its predecessors.

The Schmalturm was designed around a modified version of the Panther’s existing main gun. The standard Panther weapon was already one of the most powerful anti-tank guns of the war. However, the smaller interior of the Schmalturm required adjustments to the recoil system and gun mount.

These modifications resulted in a new designation, the 7.5 cm KwK 44 L/70. The weapon maintained essentially the same ballistic performance as the earlier gun. It could still fire high-velocity armor-piercing rounds capable of defeating most Allied tanks at long ranges.

Perhaps the most remarkable feature of the Schmalturm was its planned stereoscopic rangefinder. By the later years of the war, tank guns were capable of engaging targets at distances well beyond 1,500 m. At such ranges, accurately estimating distance became extremely important. Even small errors could cause a shell to miss entirely.

Traditional tank sights relied on the gunner estimating range visually or using reticle markings. While experienced crews could become very skilled at this, the method was imprecise. German engineers therefore sought a technological solution. The Schmalturm was designed to incorporate the EM 1.

32 m stereoscopic rangefinder developed by Zeiss. The system used two optical lenses mounted in armored housing on each side of the turret front. These distinctive bulges became one of the turret’s most recognizable features. The device worked by presenting slightly different images to the gunner’s left and right eyes.

By adjusting the optics until the two images aligned perfectly, the system could determine the exact distance to the target. The measured range would then be transmitted to the gun sight, allowing the gunner to adjust elevation accurately. This technology represented a major step forward in armored warfare.

Modern tanks still rely on advanced range-finding systems. Although today they use lasers rather than optical stereoscopy. Before we continue, this channel exists because it stays independent. If you believe serious military history should stay that way, consider channel membership. Link below.

Taken together, these features suggested that the Schmalturn might have possessed one of the most sophisticated fire control systems of any tank in the war. Another major design goal of the Schmalturn was improved production efficiency. By 1944, Germany’s industrial base was under enormous strain from Allied bombing.

According to some estimates, the Schmalturn could be produced about 30% faster than the earlier Panther turret. The Schmalturn turret was intended for the Panther Ausführung F, the final planned production variant of the tank. It was also intended to operate with the AVG 1250 infrared night vision system, a pioneering technology that allowed German tanks to engage enemies in darkness with the aid of an infrared searchlight.

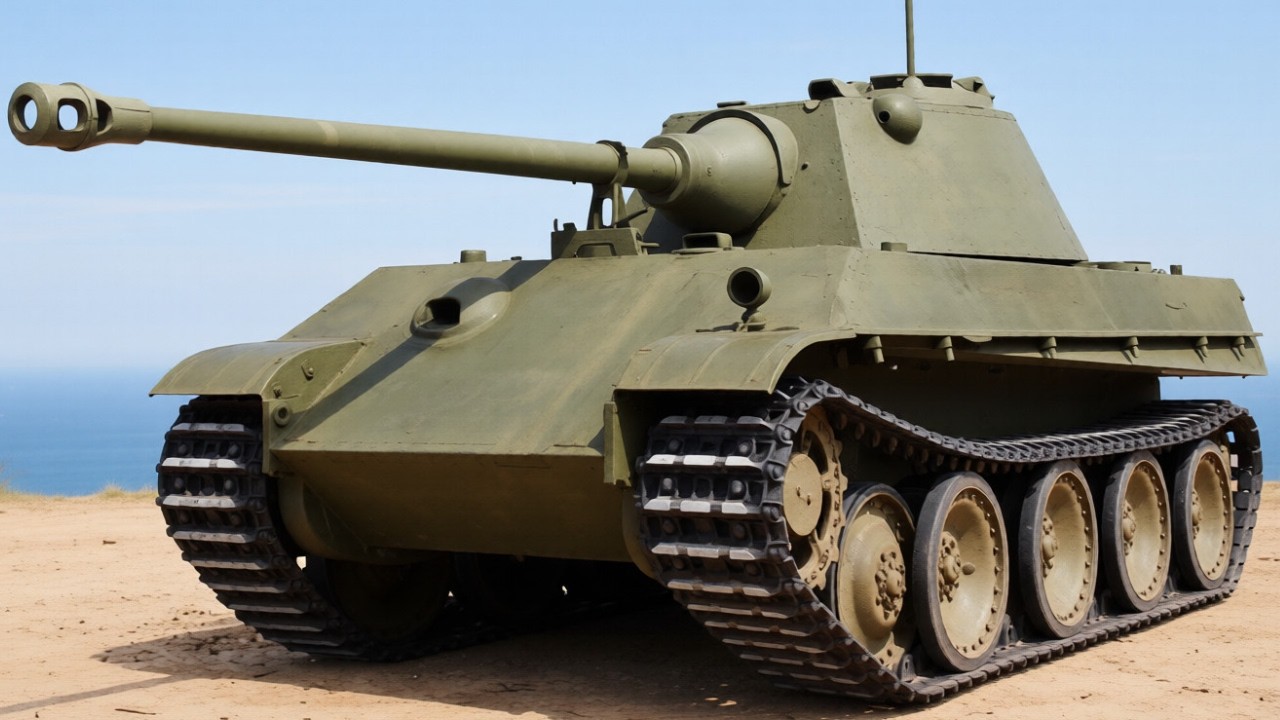

Combined with the Schmalturn’s advanced optics, the Ausführung F would likely have been one of the most technologically sophisticated tanks of the war. Despite the ambitious plans for the Schmalturn, only a small number of prototype turrets were completed. Experimental versions known as the Versuchs-Schmalturn were reportedly mounted on the Panther Ausführung G chassis for testing during the final month of the war.

These prototypes allowed engineers to evaluate the new turret’s internal layout, gun mounting system, and overall functionality. Photographs taken in early 1945 show at least one Panther fitted with the experimental turret. However, the rapidly deteriorating military situation prevented the program from progressing further.

Germany’s industry was collapsing under the combined pressure of Allied bombing, material shortages, and advancing enemy armies. Mass production of the Schmalturn never began. When the war ended in 1945, Allied forces captured several examples of the new turret. One of them was eventually transported to Britain.

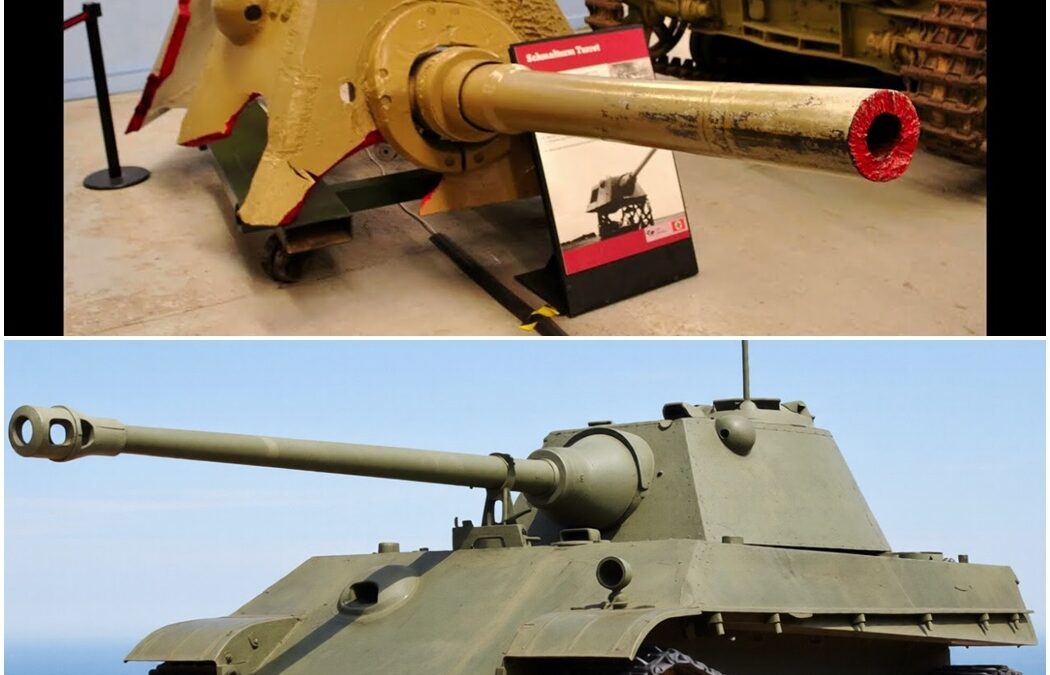

For a time, it was used as ballistic testing target before historians recognized its significance. Today, this turret can be seen at the Tank Museum in Bovington. Its presence offers a rare physical reminder of one of the most advanced turret designs of World War II. Although the Schmalturn never entered full production, its influence extended beyond the war.

The turret incorporated ideas that later became standard of modern tanks. Integrated optical range-finding systems, improved ballistic armor geometry, compact turret profiles, and advanced fire control concepts. Post-war tanks such as the American M47 Patton would later adopt similar stereoscopic range-finder arrangements mounted in external turret bulges.

In that sense, the Schmalturn represented a transitional step toward the technology of the Cold War. The Schmalturn turret stands as one of the most fascinating what-ifs of armored warfare history. Had it entered service in significant numbers, the Schmalturn-equipped Panther might have been one of the most formidable medium tanks of World War II.

Instead, it remains a glimpse into an alternative technological future, one that never quite materialized before the war came to an end. I hope you enjoyed this episode. If you want to support my channel, check out the PayPal donation link in the description, or consider becoming a member. To make sure you don’t miss my future work, subscribe to my channel and press the bell notification button.
