Why Pilots Landed Planes Without Landing Gear — And Lived D

On the morning of March 18th in 1944, a B17G named Wii Willie limped back toward RAF Molsworth with a hydraulic system shredded by flack over Friedri’s Toffen. Both main gear locked uselessly in their wells and a crew that had already decided they weren’t jumping. The landing gear that should have swung down and locked with a reassuring green light instead hung half extended, frozen by severed lines and a punctured accumulator.

On paper, this was a dead airplane. A 40,000lb machine designed to land on two 10 ply tires and a tail wheel. Now missing the one system every flight manual insisted was non-negotiable. Yet the pilot cut power over the threshold, held the nose up, and let 29 tons of aluminum and crew slide belly first onto the grass beside the runway. Everyone walked away.

The undercarriage that engineers considered essential turned out to be, in the moment that mattered most, optional, and understanding why reveals one of the most quietly brilliant adaptations of the entire air war. Standard aviation doctrine of the 1940s treated retractable landing gear as sacred. Aeronautical engineers at Boeing, Supermarine, and Faul Wolf all agreed on this much.

An aircraft without functioning gear was an aircraft that crashed. Training manuals described gear failure as one of the two or three most dangerous emergencies a pilot could face, ranking it alongside engine fire and structural failure. The official US Army Air Force’s position spelled out in technical order 0120E1 for the B7 was that crews should bail out over friendly territory rather than attempt a wheels up landing whenever altitude and fuel permitted it.

Critics of belly landing technique and there were many among flight instructors argued that a fuselage sliding along the ground at 90 mph would crumple, ignite or cartwheel. They were right that the physics were violent. They were wrong about what that violence would actually do to the men inside.

The technical reality of a belly landing turned on a handful of details that had nothing to do with the landing gear at all. The propellers were feathered or the engines shut down entirely before touchdown, stopping the blades from digging into the earth, flipping or flinging shrapnel through the fuselage.

Eighth Air Force accident reports from 1943 and 1944 show that props left windmilling accounted for a disproportionate share of the fires and injuries in otherwise survivable gear up landings. Flaps came down fully, sometimes 40° on the B7, cutting stall speed and and letting the aircraft settle rather than plow in.

Bomb bay doors, if not already open from a jettisoned load, were left closed to help distribute the impact across the lower fuselage instead of concentrating it on a single point. And crucially, the aircraft’s own structure, a semi- monok tube with a flat bottomed bomb bay and a reinforced keel running from nose to tail, acted as a crude skid, spreading a controlled crash over three or 400 ft of turf instead of stopping in one violent instant.

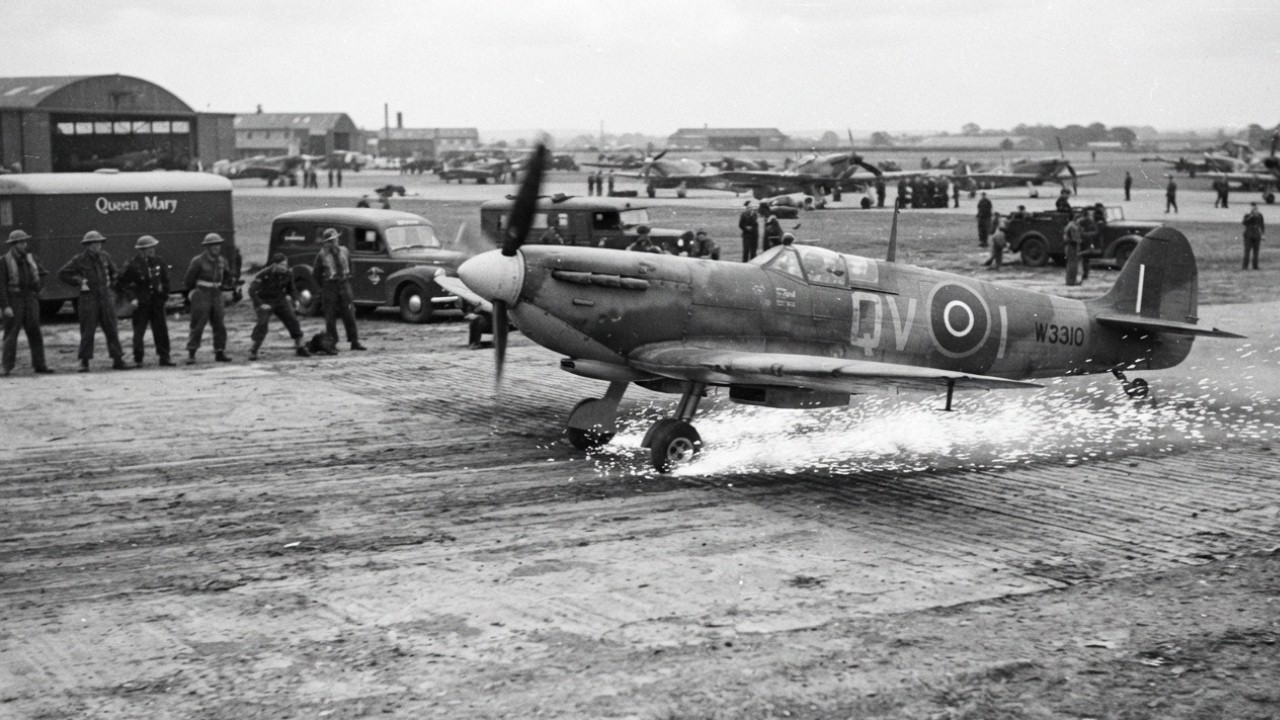

The secret wasn’t that these aircraft could survive without gear. It was that their designers had, mostly by accident, built airframes strong enough along their belly line to absorb exactly this kind of abuse. Nowhere was this proven more starkly than with a supermarine Spitfire, an aircraft whose narrow track undercarriage was already notorious for collapsing on rough grass strips, even in normal landings.

Squadron records from number two, Squadron in 1941, show pilots deliberately choosing wheels up landings over conventional ones, when their fields were badly cratered, because a Spitfire sliding on its belly across grass was statistically safer than one catching a wheel in a shell hole at 80 mph and flipping onto its back.

RAF accident investigators found that of gear up Spitfire landings on prepared grass surfaces, the overwhelming majority produced only cosmetic damage to the underside. Bent propeller blades, a scraped radiator fairing, a dented belly panel, while wheels down landings on the same damaged strips produced nose overs, broken backs, and fatalities.

One squadron engineering officer’s post-war account put it plainly. pilots stopped fearing the wheels up landing once they realized the aircraft protected them better on its stomach than on two wheels that might not both survive contact with rough ground. This wasn’t reckless pilots ignoring their training.

It was pilots and ground crews independently discovering through repetition, a truth their manuals hadn’t caught up to. The B7’s record makes the same case with harder numbers of documented wheels up landings by 8th Air Force B7s between 1943 and 1945. Fatality rates ran dramatically lower than for aircraft that attempted powered goarounds on damaged gear or crews that bailed out over enemy territory and became prisoners or casualties on the ground.

A tail gunner who survived one such landing near Baskingorn later described the impact not as a crash but as a long grinding shutter like being dragged behind a truck on a gravel road. Violent, deafening, but survivable in a way the crew hadn’t expected. Ground crews inspecting these aircraft afterward frequently found the fuselage skin peeled back like foil along the belly.

Rivets sheared in neat rows, but the pressurized crew spaces and the wing spar structure intact. The airframe had done exactly what a parachute does to a falling body. Not prevented the impact, but stretched it out long enough to survive. What made this work wasn’t any single feature, but rather the accumulated redundancy of aircraft that had been built to survive combat damage generally, not just gear failure specifically.

Self-sealing fuel tanks meant a scraped belly rarely became a fireball. Armor plate behind the pilot’s seat installed to stop flack fragments incidentally reinforced the one section of fuselage most likely to hit the ground first. Wide-wing routts on the B7 and B24 kept the aircraft from tipping onto a wing tip during the slide the way a narrower winged fighter might.

None of this had been engineered with belly landings in mind. Aircraft designers in 1938 and 1939 were thinking about combat survivability against enemy fire, not about what would happen if the hydraulics failed and the wheels never came down. The belly landing worked because a machine built to absorb one kind of punishment turned out almost by coincidence to absorb another kind just as well.

German pilots flying gear up landings and damaged BF 109’s and FW190s faced a meaningfully different outcome and the comparison is instructive rather than incidental. The 109’s narrow inward retracting gear was already a known liability in ordinary landings. Luftwafa training losses to gear collapse and ground loops were high enough that instructors treated the types undercarriage as the aircraft’s single greatest hazard to new pilots worse than anything the enemy did.

In a wheels up landing, the 109’s bellymounted radiator and its comparatively thin vententral skin offered far less of the protective bulk that British and American bombers carried. Luftwafa accident statistics from 1943 show a higher proportion of injuries and fatalities in gear-up landings among 109 pilots than the comparable figures for RAF and USAF gear up landings despite the German aircraft being smaller, lighter, and touching down at broadly similar speeds.

The difference wasn’t pilot skill. It was that the airframes underneath those pilots had been optimized for different problems. This wasn’t accidental in the sense of pure luck, and commanders who authorized belly landings over bailing out weren’t clinging to sentiment about their aircraft.

Flight surgeons and accident investigators on both sides of the Atlantic spent the middle years of the war compiling exactly this kind of data. And by 1943, the recommendation had shifted in official US training material. A controlled wheels up landing on a suitable surface was for many aircraft types statistically safer than bailing four to 10 men out of a crippled bomber at night overwater or over enemy territory.

Fields at bomber bases across East Anglia were graded and kept mowed specifically to make this option viable. And foam trucks were stationed at the ends of runways to lay down flames suppressing foam ahead of an incoming crippled aircraft. A tacit acknowledgement that gear up landings weren’t rare exceptions, but expected events, common enough to warrant standing equipment and drilled procedures.

The deeper principle here is one that shows up again and again in the history of combat engineering. The feature that fails is rarely the feature that kills you because the systems around it were built with failure in mind. Landing gear folded, jammed, or simply wasn’t there anymore by the time the aircraft turned for home.

Shot away by flack, starved of hydraulic pressure, frozen at altitude, but the fuselage kept its integrity. So, the fuel tanks kept from exploding. The structure kept its shape long enough to turn a controlled crash into a landing. Battlefields aren’t laboratories, and the machines that survived them best weren’t always the ones with the most sophisticated individual systems.

They were the ones where every systems failure had already been anticipated by some other part of the airframe, quietly doing a second job nobody had originally assigned it. Pilots who put their aircraft down on their bellies weren’t beating the odds through nerve alone. They were cashing in without always knowing it on years of design decisions made for entirely different reasons.

Decisions that happened to mean the ground when it finally came up to meet them was survivable.
